Donchian Channels in Python — Coding It from Scratch (pandas)

Donchian Channels are a rolling max and min — two lines of pandas. The only thing to get right is the prior-bar shift for breakout signals, as the explainer warned. Here’s the code.

What you’ll need

• Python 3.9+, pandas
• high, low series.

The channel

import pandas as pd


def donchian(high, low, period: int = 20):
    upper = high.rolling(period).max()
    lower = low.rolling(period).min()
    middle = (upper + lower) / 2
    return pd.DataFrame({"upper": upper, "middle": middle, "lower": lower})

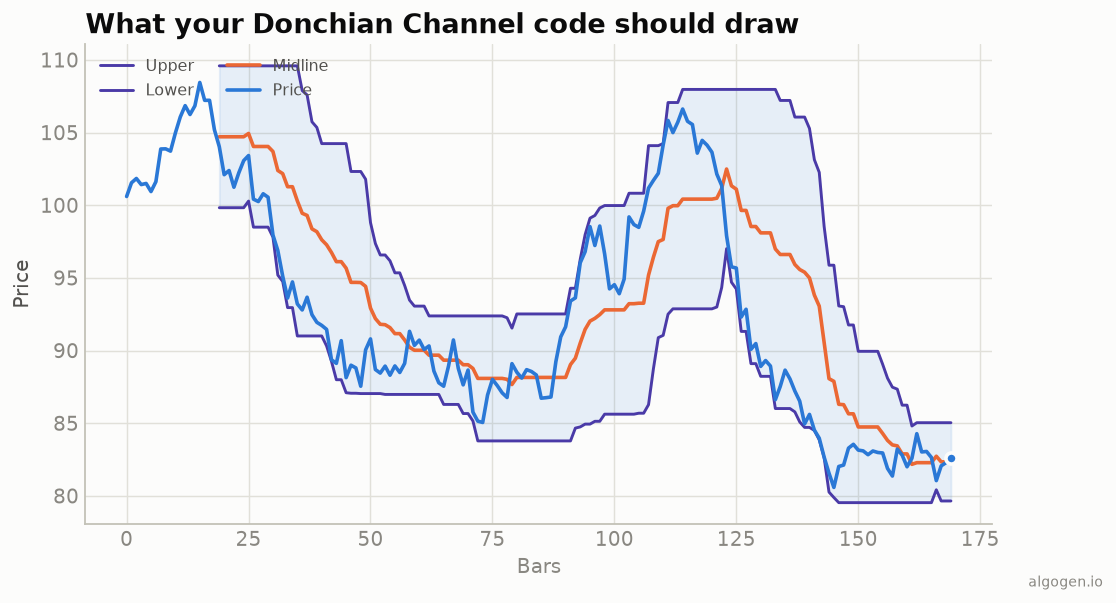

rolling(period).max() and .min() are the whole indicator — the stepped bands from the output chart.

The breakout signal (mind the shift)

For a breakout you must compare price to the channel excluding the current bar — otherwise today’s high is inside its own channel and can never break out:

dc = donchian(df["high"], df["low"], 20)

# Prior channel: shift the bands back one bar.
prior_upper = dc["upper"].shift(1)
prior_lower = dc["lower"].shift(1)

df["breakout_long"]  = df["close"] > prior_upper   # new 20-bar high
df["breakout_short"] = df["close"] < prior_lower

breakout_long fires on a genuine new 20-bar high — the classic Donchian entry to backtest in AlgoGen.

A Turtle-style system: asymmetric channels

The Turtles entered on a long channel and exited on a shorter one:

entry = donchian(df["high"], df["low"], 20)
exit_ = donchian(df["high"], df["low"], 10)
go_long   = df["close"] > entry["upper"].shift(1)
exit_long = df["close"] < exit_["lower"].shift(1)   # 10-bar low ends the long

Gotchas

• Shift for signals, not for display. The plotted channel uses the current bar; the signal uses the prior-bar channel. Mixing these up is the #1 Donchian bug — either your breakouts never fire, or they look like they trigger every bar.
• Highs and lows, not closes. The channel is built from high and low; some breakout variants trigger on a close beyond the channel (fewer false breaks) vs an intrabar high/low touch (earlier, noisier). Decide which.
• Range whipsaw. Expect many false breakouts in sideways markets — that’s the nature of the tool, not a bug.

The lazy one-liner

import pandas_ta as ta
df.ta.donchian(lower_length=20, upper_length=20, append=True)   # DCL/DCM/DCU

Same indicator elsewhere: MQL5, Pine Script, EasyLanguage, NinjaScript.

---

This post is educational, not financial advice. Indicators describe the past; they don’t predict the future. Backtest anything before you risk real money on it.
