ADX in Python — Coding It from Scratch (pandas)

The ADX is the most involved indicator in this series, but it’s still just a chain of the pieces you’ve already seen: true range, Wilder smoothing, and some ratios. The explainer lays out the logic; here’s the whole chain in pandas.

What you’ll need

• Python 3.9+, pandas/numpy
• high, low, close series.

The full chain

import numpy as np
import pandas as pd


def adx(high, low, close, period: int = 14):
    up = high.diff()
    down = -low.diff()

    # Directional movement: only the dominant, positive move counts.
    plus_dm  = up.where((up > down) & (up > 0), 0.0)
    minus_dm = down.where((down > up) & (down > 0), 0.0)

    # True range and its Wilder-smoothed ATR.
    prev_close = close.shift(1)
    tr = pd.concat([high - low, (high - prev_close).abs(),
                    (low - prev_close).abs()], axis=1).max(axis=1)

    alpha = 1 / period
    atr = tr.ewm(alpha=alpha, adjust=False).mean()

    plus_di  = 100 * plus_dm.ewm(alpha=alpha, adjust=False).mean() / atr
    minus_di = 100 * minus_dm.ewm(alpha=alpha, adjust=False).mean() / atr

    dx = 100 * (plus_di - minus_di).abs() / (plus_di + minus_di)
    adx_line = dx.ewm(alpha=alpha, adjust=False).mean()

    return pd.DataFrame({"plus_di": plus_di, "minus_di": minus_di, "adx": adx_line})

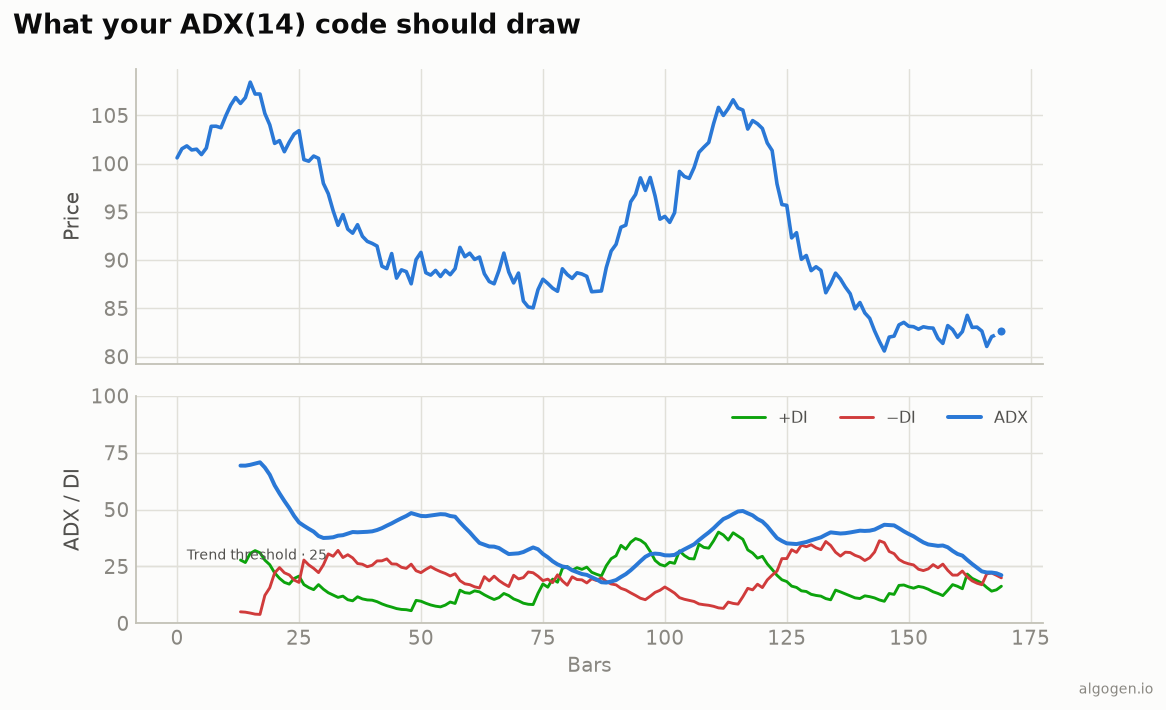

Read it top to bottom and it mirrors the explainer exactly: directional movement → smooth and normalize by ATR → DI lines → DX (their normalized separation) → smooth into ADX.

The regime filter, in code

The most valuable use of ADX is as a filter on other signals:

a = adx(df["high"], df["low"], df["close"])
trending = a["adx"] > 25
bull = trending & (a["plus_di"] > a["minus_di"])   # strong up-trend regime

Use bull to gate a trend-following entry, so you only act when a trend actually exists — then backtest whether the filter helps in AlgoGen.

Gotchas

• The DM rule. Only the larger of the up/down move counts, and only if it’s positive. The .where(...) conditions encode exactly that; getting this wrong is the classic ADX bug.
• Wilder smoothing & seeding. ewm(alpha=1/period, adjust=False) is Wilder’s smoothing but seeds on the first value; the textbook ADX seeds with sums, so the first ~2×period bars differ slightly before converging — the same seeding nuance as the ATR and EMA.
• Double lag. ADX is smoothed twice, so it’s slow by construction — treat it as a regime meter, not a trigger.

The lazy one-liner

import pandas_ta as ta
df.ta.adx(length=14, append=True)   # adds ADX_14, DMP_14, DMN_14

Same indicator elsewhere: MQL5, Pine Script, EasyLanguage, NinjaScript.

---

This post is educational, not financial advice. Indicators describe the past; they don’t predict the future. Backtest anything before you risk real money on it.
